Helix AAC Panel 50mm
The Helix 50mm AAC panel is a modern wall solution that significantly speeds up construction time and reduces costs due to its lightweight and porous structure that’s easy to cut. This panel is non-combustible and provides excellent acoustic and thermal insulation, which makes it an ideal solution for residential external cladding.
Product Overview
The Helix 50mm AAC panel is designed as an all-in-one cladding solution for steel and timber-framed buildings. The Helix 50mm AAC panels are made of autoclaved aerated concrete, a material filled with air pockets, which gives the panels exceptional insulating power and serves as a good alternative to traditional masonry because it’s 75% lighter. The panels are also reinforced by a single-layer steel mesh to prevent cracking, improve tensile strength, and increase durability over time.
50mm AAC panels can be used for:
- Construction of external walls
- Upper-story cladding
- Renovations and retrofitting
- Slim-profile re-cladding
- Internal party walls
Helix System Products
Benefits of AAC Panel 50mm
Faster Build Times
AAC panels reduce structural load compared to traditional masonry, allowing faster installation and lower foundation requirements.
Thermal Insulation Performance
AAC panels reduce structural load compared to traditional masonry, allowing faster installation and lower foundation requirements.
Fire Resistance
AAC panels reduce structural load compared to traditional masonry, allowing faster installation and lower foundation requirements.
Versatile Applications
Suitable for walls, floors, façades, and cladding systems across a wide range of building types.
Reduced Labour Requirements
AAC panels reduce structural load compared to traditional masonry, allowing faster installation and lower foundation requirements.
Specifications HELIX AAC Panel 50mm
Technical Information

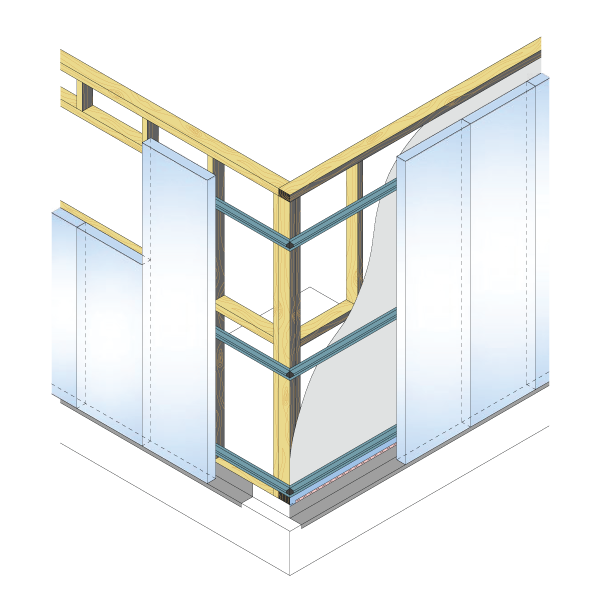

The Helix 50mm panels are made of autoclaved aerated concrete and reinforced by a single-layer steel mesh, centrally located. Each panel is screwed to steel or timber wall framing through horizontal light-gauge steel top-hat battens and breathable wall wrap. The panel is 50mm thick, 600mm wide, and weighs 23.9-26.5 kg/m².

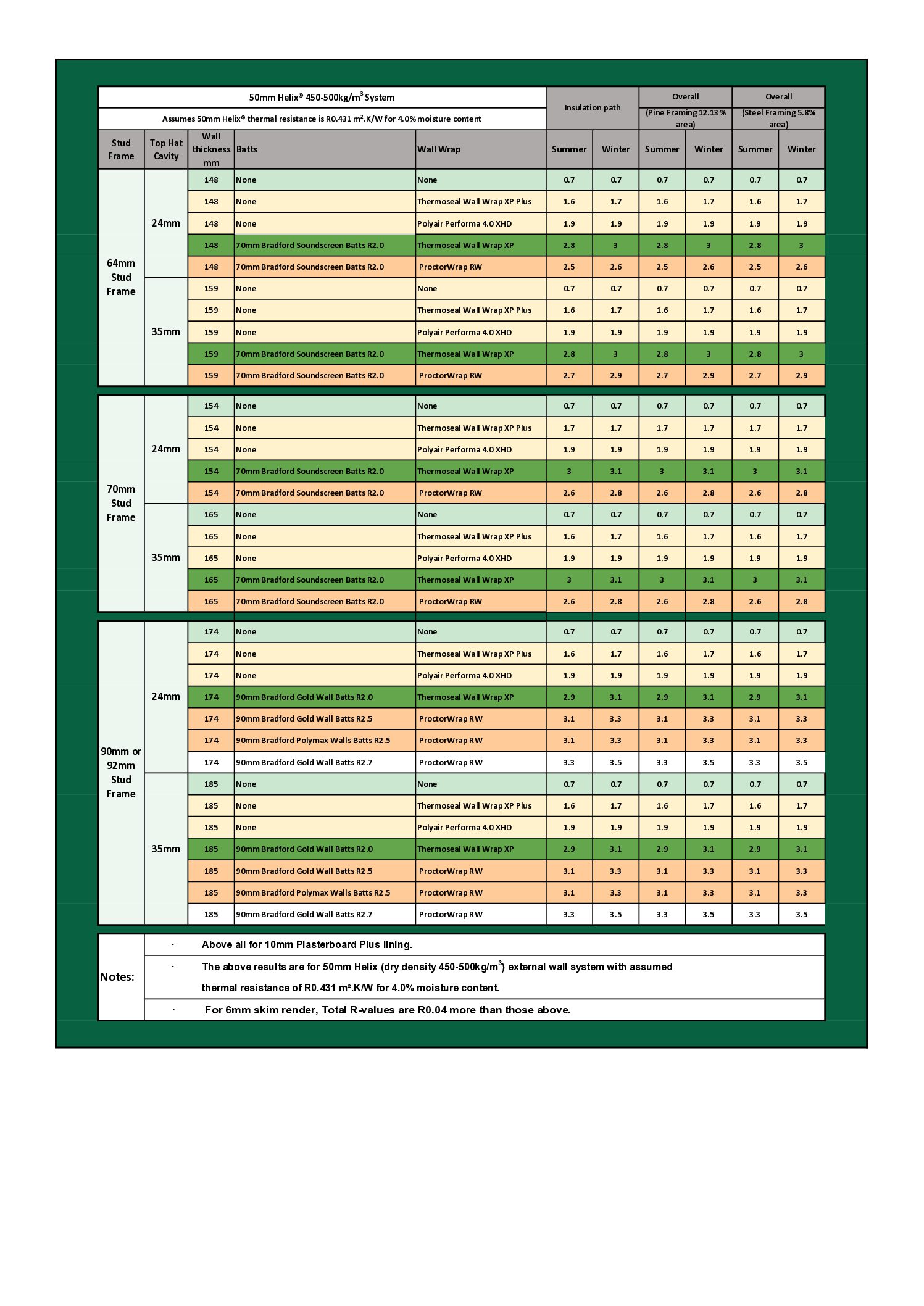

The 50mm AAC panel comes in various lengths - 2200, 2400, 2550, 2700, 2850, and 3000mm. It achieves a Fire Resistance Level (FRL) of 90/90/90, meaning it provides 90 minutes of protection against fire, while its thermal resistance stands at 0.431 m² K/W.
Geometry & mass
- Thickness
- 50 mm nominal
- Panel Width
- 600mm
- Panel Length
- 2200, 2400, 2550, 2700, 2850, 3000mm
- Frame Compatibility
- Timber and steel
- Declared Density Class
- 500
- Dry Density
- 450-500 kg/m³
- Ambient Density
- 478-531 kg/m³
- Density for Transport
- 670-740 kg/m³
- Panel Edge Profile
- Square
- Panel Weight
- 23.9-26.5 kg/m²
- Edge profile
- Tongue & groove, 4 sides
Performance
- Thermal Resistance
- 0.431 m² K/W
- Ultimate Strength Bending Capacity
- 0.226 kNm/m
- Reinforcement
- Single-layer steel mesh, centrally located
- Steel bars
- 5 x Ø 4.5mm longitudinal bars and 6-8 x Ø 4.5mm transverse bars depending on panel length
- Coefficient of Thermal Expansion
- 8x10⁻⁶ /°C
- FRL
- 90 / 90 / 90 (both sides)
- Rw + Ctr
- 60 dB (tested)
- Thermal λ
- 0.165 W/m·K
- U-value (panel)
- 0.83 W/m²·K
- Compressive str.
- ≥ 4.0 MPa
- Reaction to fire
- Non-combustible
Tested. Certified. Built for Australian Standards.
Helix AAC Panel Compliance & Performance
Helix AAC panels are tested and certified to meet Australian construction requirements.
AS Standards
Structural Performance
Designed in accordance with relevant Australian standards to ensure strength and reliability in wall systems.
Fire Rated
Fire Resistance
Non-combustible material capable of achieving high fire resistance levels suitable for compliant wall assemblies.
Coating Systems
Weatherproofing
When installed with certified coating systems, AAC panels provide long-term resistance to water penetration and environmental exposure.
Acoustic Comfort
Acoustic Performance
AAC panel systems are suitable for intertenancy walls requiring sound insulation between ….
Thermal Value
Energy Efficiency
Thermal properties assist in meeting NCC energy performance requirements for external walls.
Design Freedom
Design Flexibility
Compatible with a range of designer finishes and render systems, allowing architects to achieve clean, minimalist aesthetics.
Documents
Design & Installation Guide
Wall system details, technical specifications and construction-related information, including installation requirements, are available in the Helix Systems Design & Installation Guide.
