Helix Systems
Inter-tenancy Party Wall Systems

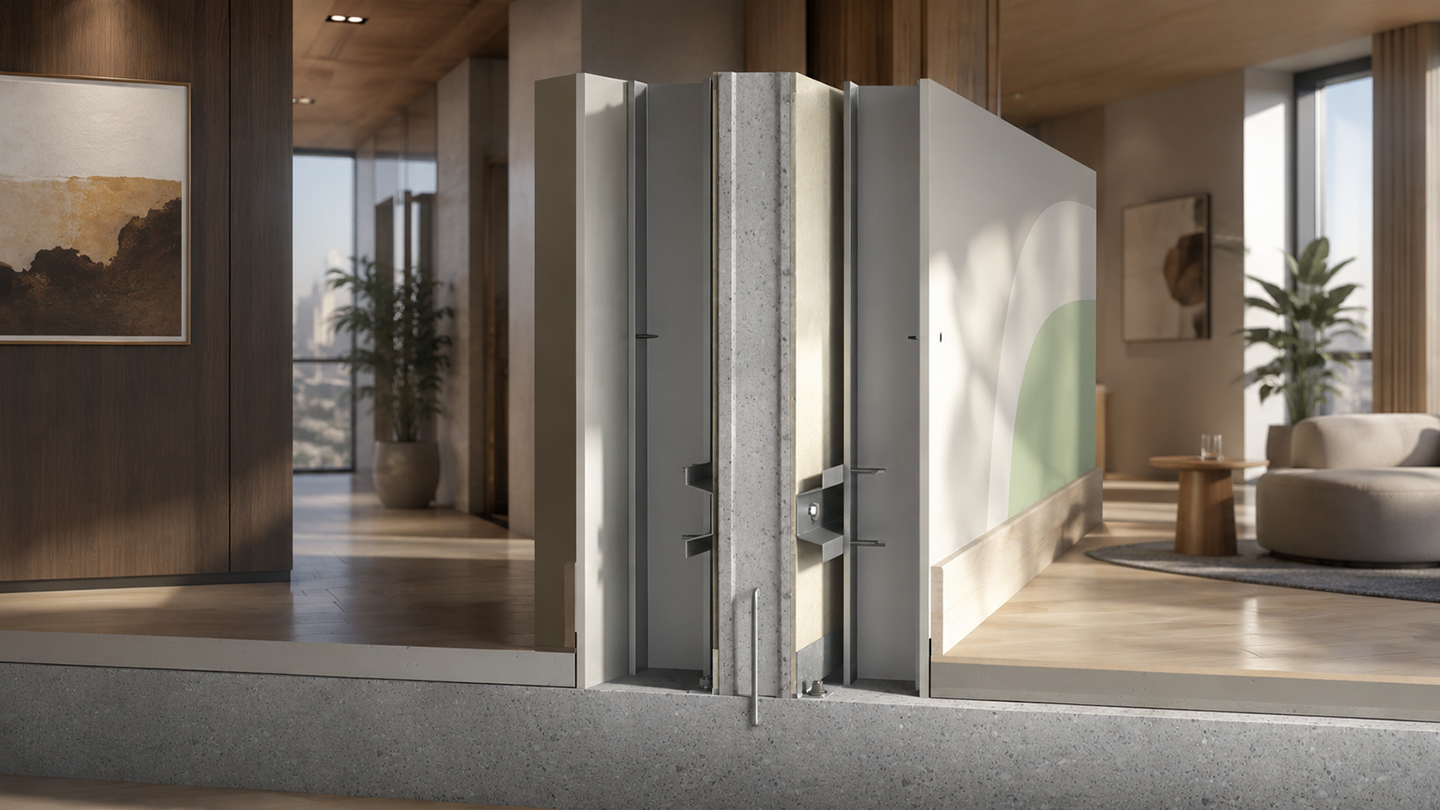

The Helix AAC intertenancy and party wall systems feature panels designed for quick installation between separate residential buildings. They address three key challenges of modern homes in Australia – acoustic and thermal insulation and fire safety.
Product Overview
The main star of this system is autoclaved aerated concrete (AAC). This porous material reduces noise transmission by up to 50 dB and achieves an FRL of up to 120/120/120, making the walls suitable for use in BAL-rated zones. AAC panels also use thermal mass to eliminate temperature fluctuations and reduce energy costs.
Helix AAC intertenancy and party wall systems are NCC certified, meaning the panels have undergone rigorous testing to meet Australian standards for fire resistance and sound insulation. Helix AAC panels come in two thicknesses - 50mm and 75mm, while both panels are 600mm wide. This means that one panel can replace 35 to 45 standard bricks. Helix panels can be installed on various elements, from concrete slab-on-ground to timber and steel wall framing. They can also be cut and shaped with a standard hand saw, which significantly speeds up installation, reduces labour costs, and minimises waste.
Helix AAC inter-tenancy and party wall systems are ideal for residential and commercial buildings, especially multi-family buildings.
Key Features
- Up to 50 dB Noise Reduction
- FRL Up to 120/120/120
- Thermal Mass Efficiency
- Faster Installation
- NCC-Certified System
Helix System Products
Benefits of AAC Panel 50mm
Faster Build Times
AAC panels reduce structural load compared to traditional masonry, allowing faster installation and lower foundation requirements.
Thermal Insulation Performance
AAC panels reduce structural load compared to traditional masonry, allowing faster installation and lower foundation requirements.
Fire Resistance
AAC panels reduce structural load compared to traditional masonry, allowing faster installation and lower foundation requirements.
Versatile Applications
Suitable for walls, floors, façades, and cladding systems across a wide range of building types.
Reduced Labour Requirements
AAC panels reduce structural load compared to traditional masonry, allowing faster installation and lower foundation requirements.

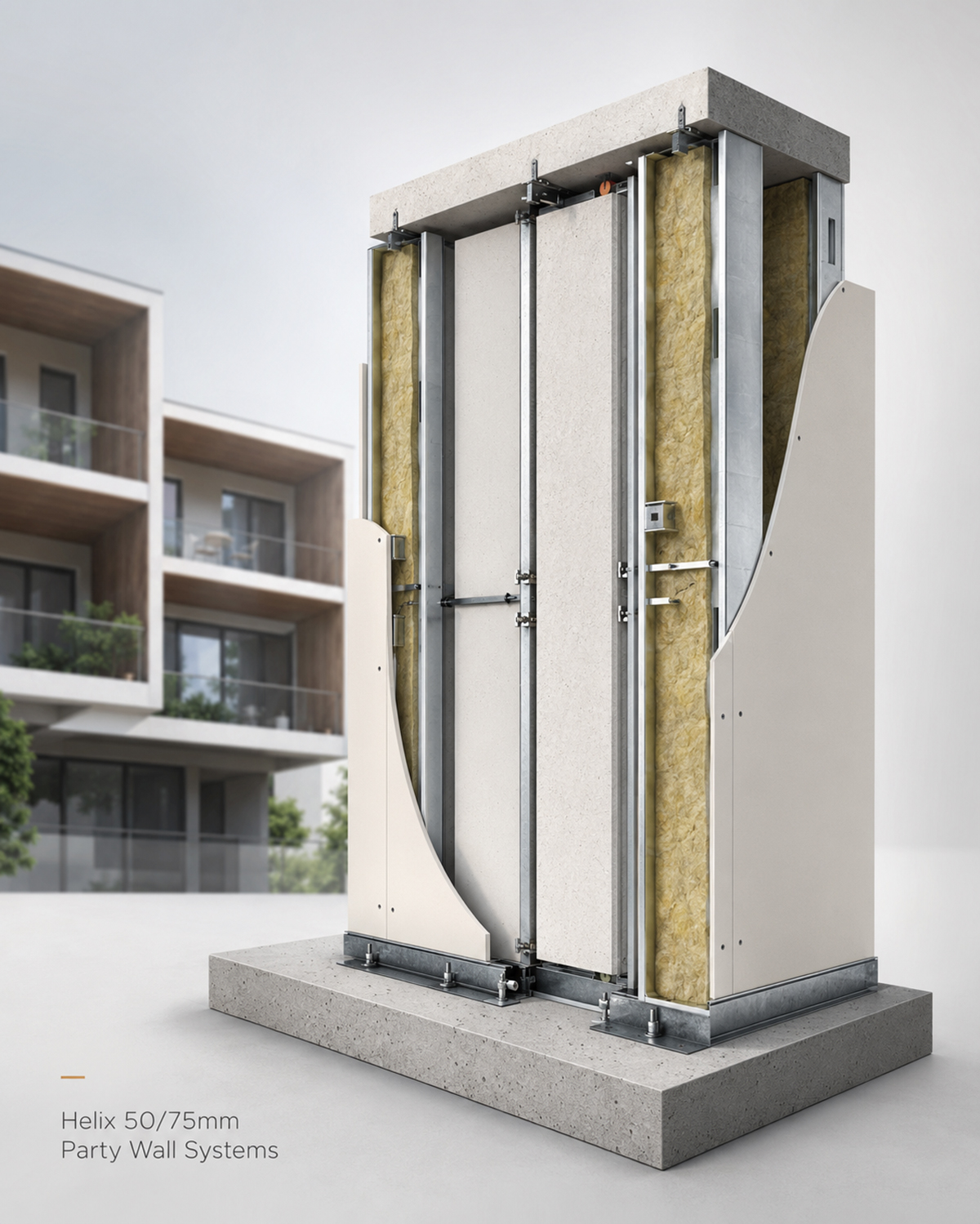

PARTY WALL 50/75mm, timber or steel frames
PARTY WALL 50/75mm, timber or steel frames
System Variant 1
- Plasterboard
- 1x13mm, 10.5kg/m2 (impact resistant, fire-rated, acoustic plasterboard)
- Stud Framing 450mm
- Timber 70x45, or Steel 70x35x0.55min
- Insulation Glasswool
- min. R2.0, 70mm, 10kg/m3
- Gap
- 20
- Panel
- 50
System Variant 2
- Plasterboard
- 1x13mm, 8.4kg/m2 standard plasterboard
- Stud Framing 450mm
- Timber 70x45, or Steel 70x35x0.55min
- Insulation Glasswool
- min. R2.0, 70mm, 10kg/m3
- Gap
- 40
- Panel
- 50
System Variant 3
- Plasterboard
- 1x13mm, 8.4kg/m2 standard plasterboard
- Stud Framing 450mm
- Timber 90x45, or Steel 90x35x0.55min
- Insulation Glasswool
- min. R2.0, 70mm, 10kg/m3
- Gap
- 20
- Panel
- 50
System Variant 4
- Plasterboard
- 1x13mm, 8.4kg/m2 standard plasterboard
- Stud Framing 450mm
- Timber 70x45, or Steel 70x35x0.55min
- Insulation Glasswool
- min. R2.0, 70mm, 10kg/m3
- Gap
- 20
- Panel
- 75
Documents
Design & Installation Guide
Wall system details, technical specifications and construction-related information, including installation requirements, are available in the Helix Systems Design & Installation Guide.
Tested. Certified. Built for Australian Standards.
Helix AAC Panel Compliance & Performance
Helix AAC panels are tested and certified to meet Australian construction requirements.
AS Standards
Structural Performance
Designed in accordance with relevant Australian standards to ensure strength and reliability in wall systems.
Fire Rated
Fire Resistance
Non-combustible material capable of achieving high fire resistance levels suitable for compliant wall assemblies.
Coating Systems
Weatherproofing
When installed with certified coating systems, AAC panels provide long-term resistance to water penetration and environmental exposure.
Acoustic Comfort
Acoustic Performance
AAC panel systems are suitable for intertenancy walls requiring sound insulation between ….
Thermal Value
Energy Efficiency
Thermal properties assist in meeting NCC energy performance requirements for external walls.
Design Freedom
Design Flexibility
Compatible with a range of designer finishes and render systems, allowing architects to achieve clean, minimalist aesthetics.
